2015-16 Alignment Specs

jstkrsn

jstkrsn

Registered Member
Joined
Apr 4, 2012
Messages
66
Reaction score
3
Points
8
Location
Parrish, Florida
Genesis Model Type
Genesis G90
Anyone know where you can find the wheel alignment specs for our cars?

Thx

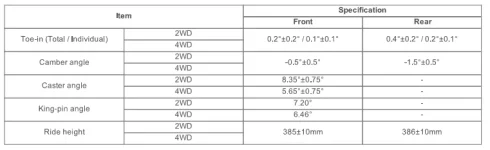

Here it is for the 15. Not sure if there are changes for the 16.


Attachments

  • align.webp
    10.9 KB · Views: 305
Perfect, just what I needed. Mine's 1/2" total toe-in on the front. A little out.

Thx

KDM Warehouse is the official Genesis Forum Store! We ship from the USA, not Asia! --> [CLICK HERE] <--
Looking to update and upgrade your Genesis luxury sport automobile? Look no further than right here in our own forum store - where orders are shipped immediately!
Interesting. I can visually tell that my rear camber is about -3 or -4. When I asked the dealer to correct this and to bring it as close to 0 as possible they said it was within spec. I absolutely hate seeing "performance sedans" that spend 99% of their time going in a straight line with negative camber from the factory for the sake of "corner handling". It's ridiculous and makes for some pretty stupid tire wear that shouldn't be occurring.
