Hello guys,

I own a 2013 Genesis Sedan 3.8L with Lexicon touchscreen NAVI.

I was able to access the "BLUETOOTH ENGINEERING MODE" by following a guide on this forum and without even knowing how I did I ended up in a "DEV MODE" with more options but I have no clue how to go back there.

Let me know if you found out how to access the full ENG Sub Menu. I'd like to change the bootup screen!

Thanks!
Can you please provide the thread link you referenced?

I did not think anyone was able to establish how to get into any engineering menus on the 2013-14 as of yet!


bardbq

Hasn't posted much yet...
7
0
1
Here is what I did:

I can get into two "hidden" screen.

1) BLUETOOTH ENGINEERING MODE
https://goo.gl/photos/ausuTceBPEinoYQYA

- Press the PHONE button
- Go in the SETUP screen (I don't remember what is the exact menu caption but it's when you change the phone/bluetooth settings)
- Press the lower left blank/black space about 1/8 inches from the lower left corner of the screen one time and then press the upper right blank/black space about 1/8 inches from the upper right corner of the screen one time as well

2) DEV_MODE
https://goo.gl/photos/qsktVDbKL35LUgFV6
https://goo.gl/photos/VjhuJygffRUCuaZp7
https://goo.gl/photos/y3eare8toigHbo727
https://goo.gl/photos/EsW86dNhRHG5eMXQ9
https://goo.gl/photos/uiXed9hgbvgeyWjT7

- In GPS/Navigation mode, push the SETUP button
- Go in INFO (I don't remember what is the exact menu caption but it's when you see the globe with the satellites)
- Press the globe (by making sure you are not over a satellite) for about 3 seconds

I'm pretty sure we can get something out of the AMOS menu screen...

Let me know if you find anything else or if you have trouble getting there since I don't remember exactly all I did. I will do a video tutorial if needed.


shagnat

Registered Member
1,014
2
38
So, I'm stoopid...... what can I do other than check SW versions. What can I change that might be beneficial or different that I may like such as splash screen on start up?


Husam

Registered Member
45
4
8
Hey guys,

Did anyone figure out how to access the Engineering Mode Menu on the Ultimate trim (2015+) model year?



Thanks,
______________________________


g_510156

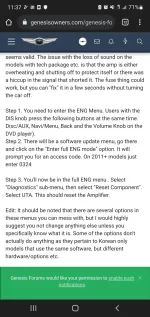

What I did to access the screen on my 2012 Genesis

•Engine on, but not running
•press and hold down Disc/Aux, Navi Menu and back button simultaneously with your right hand and press the power button at the same time with your left hand.


Rspected

Registered Member
129
38
28
Genesis Model Type
1G Genesis Sedan (2009-2014)
2012 access

Hold back, disc/aux, navi, and push radio power button simultaneously. Once in menu, go to the option that says "to full eng mode" then type in code 0324 and hit "ok".

Now you have access to the full menu. If you go to variant settings and scroll all the way down you can turn the Prada startup screen on so it will show Genesis Prada on the screen when you start the car up. Pretty cool. I've also turned on my ESC height just cause I like to pretend it's on air. Lol. Seat easy access on is a must if you dont have it enabled. Couple cool things you can do in this menu. Also somewhere in the menu it shows current battery voltage and you can read DTCs

(Wrote this off memory, may not be 100% accurate)


Rspected

Registered Member
129
38
28
Genesis Model Type
1G Genesis Sedan (2009-2014)
I've made a video guide on how to do this in a 2012, fellas.

______________________________


Jonte

New member
6
0
1
Genesis Model Type
1G Genesis Sedan (2009-2014)
It works for my 2010 4.6L just can't change the startup to Prada. Probably because the Prada hadn't come out yet I guess.


eevilweevil

New member
4
5
3
Genesis Model Type
1G Genesis Sedan (2009-2014)
I have a 13 with Lexicon, non-touch screen. I do not have the disc/aux button. Anybody have any ideas?
